The Official Sky Offshore solution
for your vessel
Offer your guests all the comfort of their own living room with Sky TV content at sea, chosen to suit their needs. Sky’s comprehensive sports packages ensure no one misses a moment of their favourite sport, with live coverage from the world’s biggest sporting events.
And it’s not just about sport, Sky Offshore also brings you 24-hour news coverage and quality entertainment with cutting-edge dramas, the best new comedy and the latest blockbusters on Sky Cinema.
Sky Offshore Packages
Sky TV for Yachts

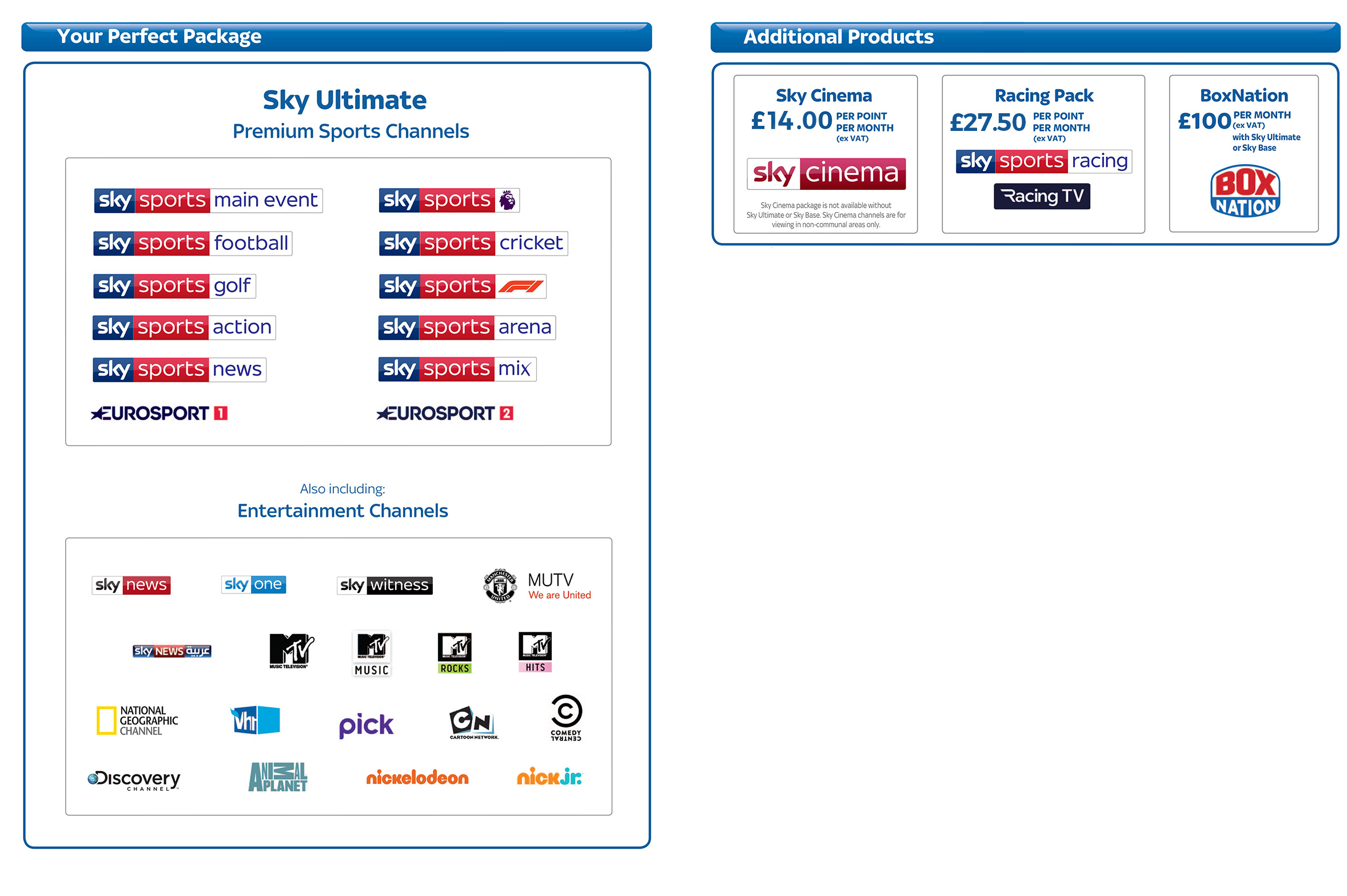

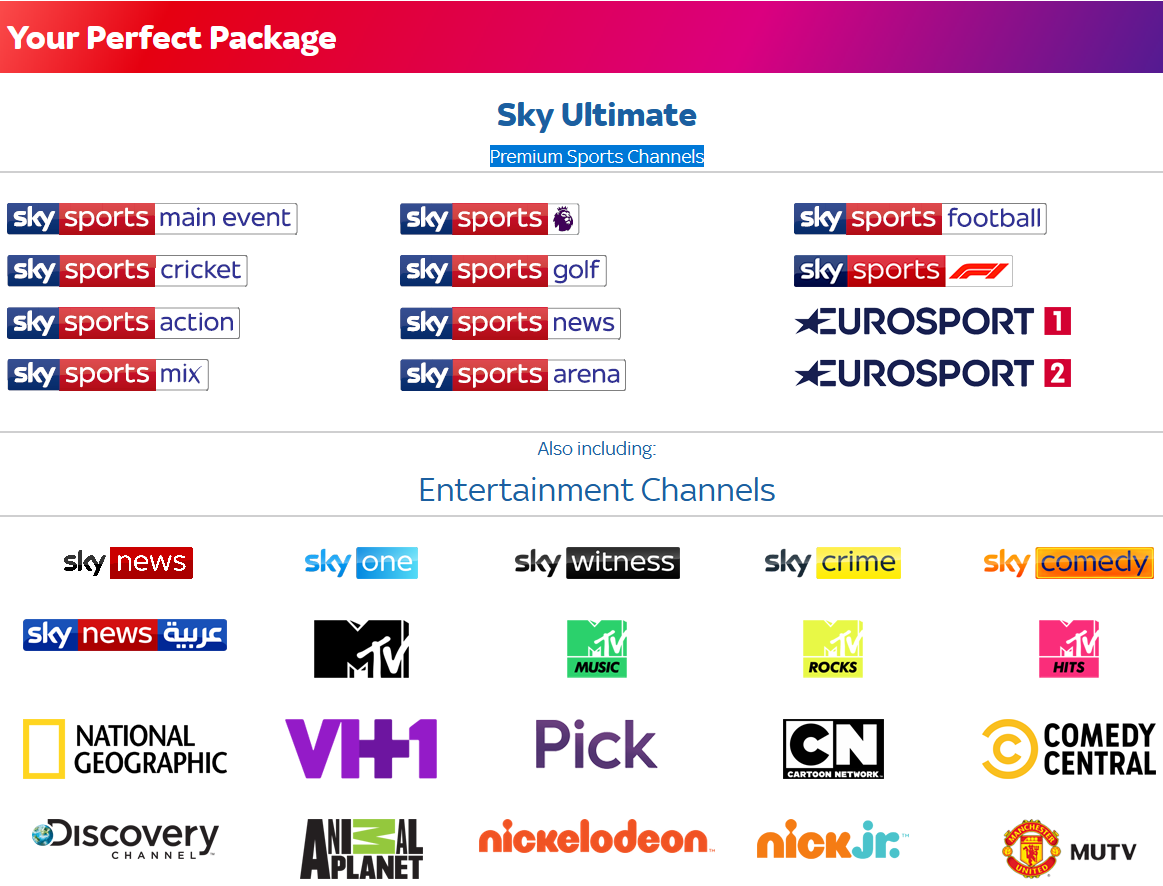

Did you know that you can get Sky Ultimate on your vessel? The images below detail the packages available. Sky Ultimate is the standard package, then you have the choice to add additional products like Sky Cinema for just £14.00 extra a month (ex VAT) and finally, you choose the equipment you’ll need to set up on ship.
Pricing
| Yachting Price Plan – 6+ Sky cards | 12 months | 6 months |
| Package | Monthly Subscription Price ex VAT | Monthly Subscription Price ex VAT |
| Sky Ultimate | £101.50 (per card) | £117.00 |
| Sky Cinema | £14.00 (per card) | £14.00 (per card) |
| Racing Pack | £27.50 (per card) – minimum of 4 cards | £27.50 (per card) – minimum of 4 cards |
| Box Nation (for up to 5 cards) | £100.00 (per card) | £100.00 (per card) |
| Minimum Monthly Fee | £642.00 ex VAT | £739.00 ex VAT |
Prices exclude equipment, VAT, delivery, installation and Admin/Support Fee.
Sky Offshore for Small Vessels
We can offer a a small vessel plan to any yacht with four cabins or less.

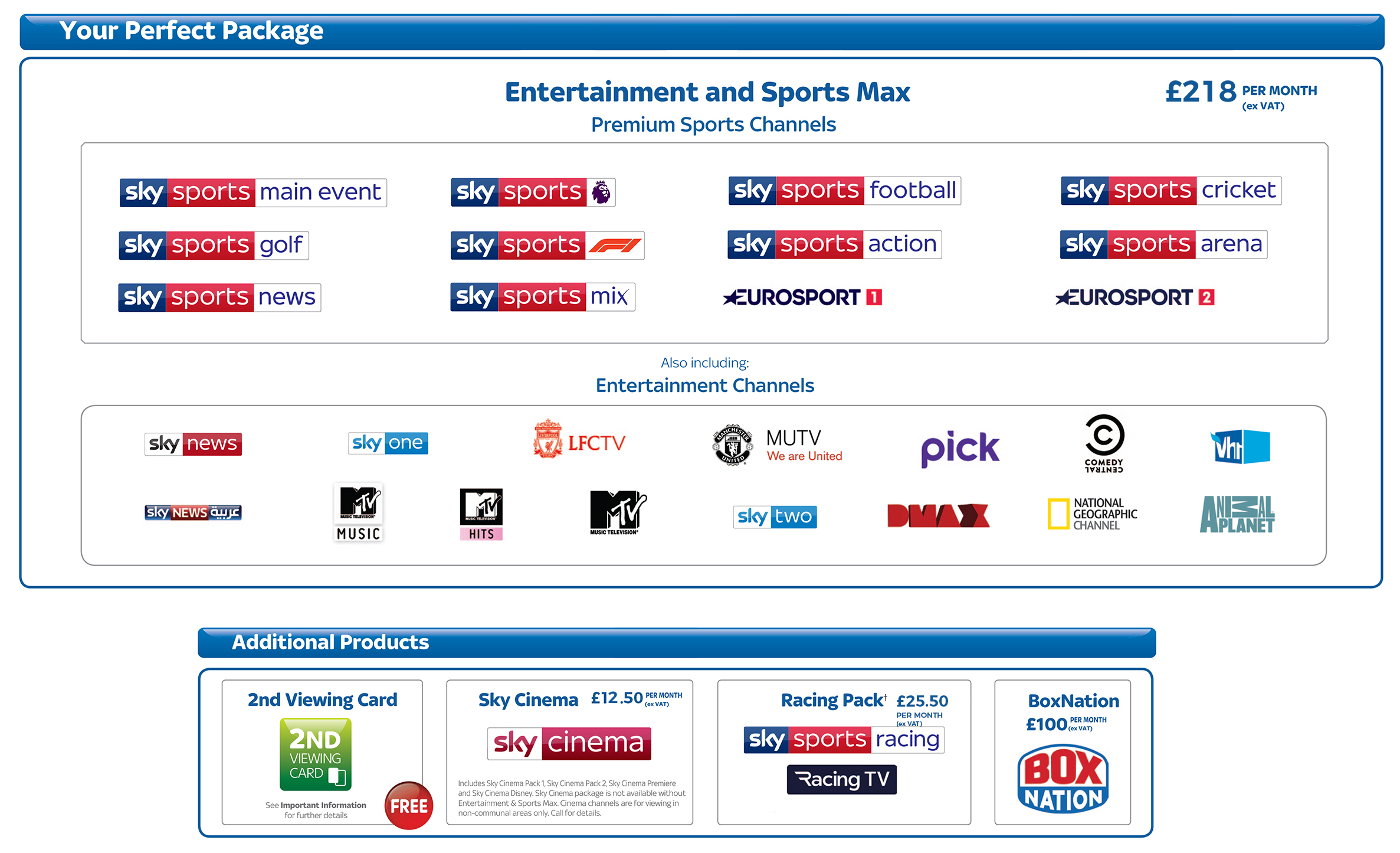

The package has a three step approach to getting you set up with Sky.
1. First you pick your package
2. Select any additional products of your choice, such as Sky Cinema for just £12.50 extra a month (ex VAT)
3. Finally you choose the equipment you’ll need to set up on the yacht
Sky Offshore for small vessels has a maximum limit of four cards per vessel and a minimum of two. If the number of Sky cards you require is greater than four, please take a look at our Sky for Yachts plan.
Pricing
| Small Vessel Price Plan – 2 Sky cards | 6 month minimum |
| Package | Monthly Subscription Price ex VAT |
| Entertainment and Sports Max | £218.00 (includes a 2nd card free) |
| Sky Cinema | £12.50 (per card) |
| Racing Pack | £25.50 (per card) – minimum of 4 cards |
| Box Nation | £100.00 (per card) |
Prices exclude equipment, VAT, delivery and installation.
Support
Sky Footprint

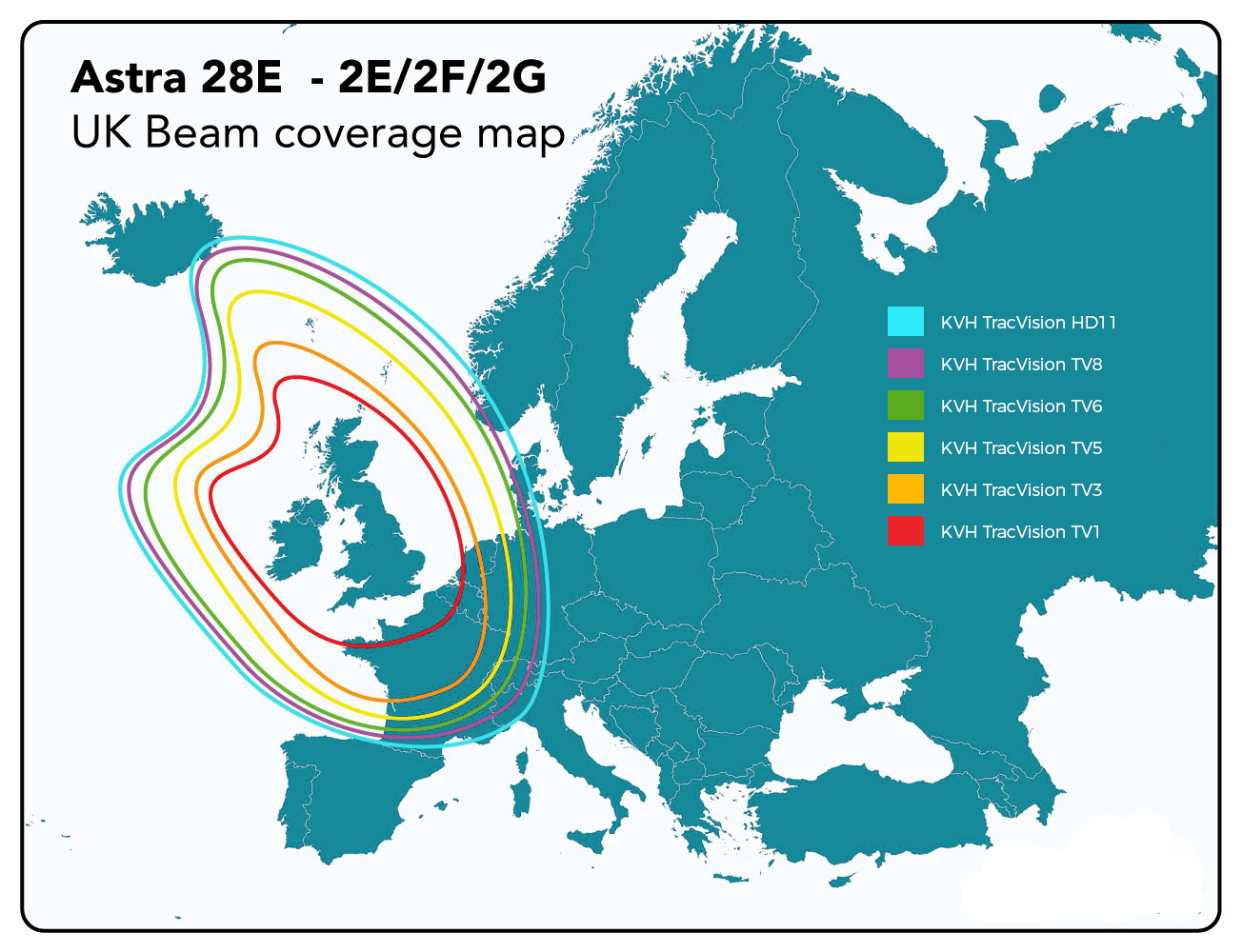

UK Spot Beam

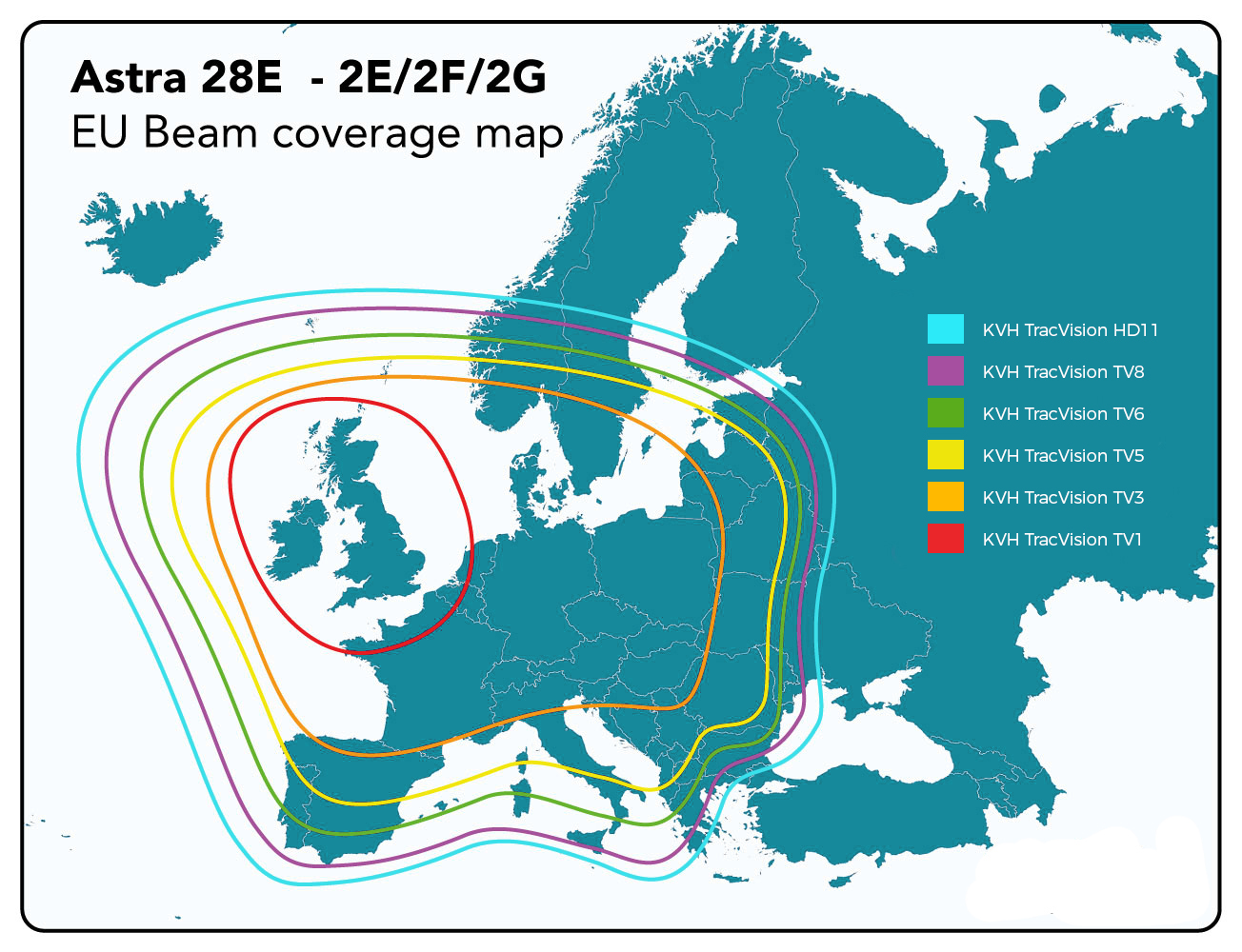

EU Spot Beam
Technical Information
| TVRO DAC General Settings | Value |
|---|---|
| Satellite: | 28.2E |
| Baud Rate: | 275000 |
| FEC: | AUTO |
| Auto threshold: | 0100 |
| EL step: | 0000 |
| AZ step: | 0000 |
| Step integral: | 0000 |
| Search inc: | 0010 |
| Search limit: | 0100 |
| Search delay: | 0030 |
| System Type: | 0069 |
| Gyro type: | 0002 |
| Polang type: | 0072 |
| Pol offset: | 0030 |
| Pol scale: | 0090 |
|
AZ limits:
|
For Blockage Zones |
| EL Limits: | For Blockage Zones |
| TX polarity: | 0002 |
| AZ trim: | Specific to Vessel |
| EL trim: | Specific to Vessel |
| 5v Offset: | 0000 |
| 5v Scale: | 0000 |
| Track Disp: | 0000 |
| Dishscan: | ON |
| SAT REF: | OFF |
| Control Tracking: | KU Hi |
| Beam Settings for
Astra 28.2E
|
SET 1
VERT LOW |
SET 2
VERT HIGH |
SET 3
HORZ HIGH |
SET 4
HORZ LOW |
|---|---|---|---|---|
| Tracking Frequency | 979 | 1923
or 1952 or 2010 |
1354
or 2033 or 2083 |
964 |
| VOLTS | VERT 13V | VERT 13V | HORZ 18V | HORZ 18V |
| TONE | OFF | ON | ON | OFF |
| Transponder (Not Required) | 42 | F2L | 13 | 41 |
